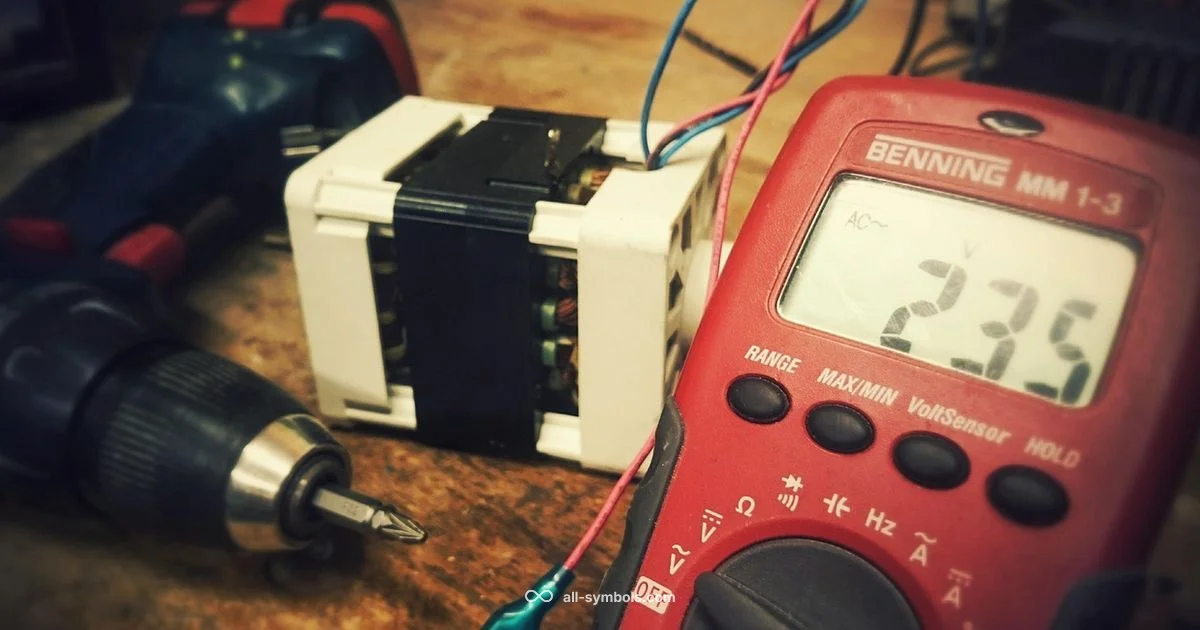

Continuity Symbol on a Multimeter: What It Means

What the continuity symbol represents on a multimeter

Continuity testing is a quick check to determine whether two points in a circuit are electrically connected. In most multimeters, you activate this test with a dedicated symbol on the rotary selector, often labeled CONT or represented by a small speaker or waveform icon. When the probes touch points that form a complete path, the meter emits an audible beep and usually shows a very low resistance value. The exact appearance of the symbol changes across brands and models, but the fundamental idea remains constant: a closed path means current can flow with minimal resistance. For students and professionals alike, continuity tests save time by confirming wiring integrity, tracing PCB traces, and validating components without needing precise resistance measurements. All Symbols notes that recognizing the symbol is the first step to efficient troubleshooting across electronics, automotive, and lab work.

How to identify the symbol on different multimeters

Brand and model differences mean you may see a variety of icons for continuity. Common indicators include a tiny speaker icon, a curved waveform, or the letters CONT on the dial window. Some meters combine the icon with a numeric resistance readout that appears when you test a path. If the manual isn’t clear, look for a legend or symbol diagram in the user guide. Regardless of styling, activating this mode enables the meter to compare the path between probes to a low-resistance threshold and provide feedback—audible or visual—when continuity is detected. Keeping leads clean and contacts solid improves reliability across devices and brands.

The beep and resistance readout: how to interpret continuity

Continuity mode answers a simple question: is there a complete electrical path between the two points? A beep is a quick, intuitive cue that continuity exists, typically accompanied by a near-zero resistance reading on the display. Some meters display a specific ohm value, while others show a generic flag like OL or a binary indicator. The exact threshold that triggers the beep depends on the meter’s design and the quality of the test leads. In practice, rely on both the audible cue and the resistance display when available. A beep alone can be misleading if the contact is flaky or if the path carries a very small current; always verify with a stable low-resistance reading when the circuit allows it.

How to perform a continuity test safely

Follow a disciplined procedure to avoid damaging the circuit or your meter. Start by powering down the device under test and discharging capacitors as needed. Set the meter to continuity mode by selecting the CONT symbol or its equivalent. Plug the probes into the proper ports, making sure the tips are clean and intact. Place the probes on the two points you want to test, then listen for the beep and note the display value. If the display shows OL or a high resistance, the path is open. For the most reliable result, test multiple points along a wire or trace and compare with the circuit diagram. When finished, turn off the meter and store the probes properly.

Common mistakes when testing continuity

Avoid testing a powered circuit or touching live components during a continuity check. Worn, dirty, or damaged probes can produce false readings or inconsistent beeps. Do not rely on a single beep as proof of a robust connection—pressure, contact quality, and lead length all influence results. Be aware that some meters use a low threshold for beeps, so a path with modest resistance might still trigger an audible cue; use the resistance reading when available to corroborate the result. Finally, remember that continuity testing is a qualitative check and should be supplemented with quantitative resistance or insulation tests for critical applications.

Practical scenarios: wiring harness, PCB traces, and connectors

Continuity testing shines in real-world troubleshooting. For a wiring harness, test from one end of a pin to its mate to confirm a continuous connection. On a printed circuit board, check copper traces by testing segment to segment to locate breaks or cold solder joints. In connectors, map each contact to its counterpart to verify correct mating and continuity across the assembly. In each case, keep a clear record of the expected connections, and compare live results against the circuit schematic or wiring diagram. Using a consistent probe technique helps reduce misinterpretation when diagnosing complex assemblies.

How to test a suspected broken wire with continuity

When you suspect a break, test in stages. Expose clean copper at each end of the wire, then test from one end toward the other. A beep between the ends confirms the segment is intact; absence of a beep suggests a possible break. If you can, test at several evenly spaced points along the wire to triangulate the location of the fault. Document each test result with notes or a simple map of continuity paths, which makes repairs faster and reduces the chance of rework. After locating the fault, repair or replace the damaged section and re-test to confirm recovery.

Limitations of continuity testing and when to use resistance mode

Continuity testing answers whether a complete path exists, not how much resistance is present under normal operating conditions. A path with very high resistance may still fail a continuity test, yet function in low-current scenarios; conversely, a path with near-zero resistance may not reflect behavior under load. For precise measurements, switch to resistance mode and compare readings to the circuit’s design specifications. Temperature, probe quality, and contact cleanliness can all affect results, so re-test if you suspect inconsistency. Use continuity as a fast screening tool, then perform detailed resistance or insulation tests as needed.

Maintenance and care for your meter's probes

Probe condition drives test accuracy. Regularly inspect tips for wear, bending, and corrosion. Clean tips with isopropyl alcohol and a lint-free cloth; replace worn probes or leads promptly. Store probes in a protective cap or pouch to prevent tip damage. Avoid sharp bends or tension that can fatigue the wires, especially on long test leads. Periodically inspect meter jacks for debris and corrosion, and recalibrate thresholds if your device supports it. Proper probe care yields more reliable readings and longer instrument life.
