What Symbol Indicates Voltage on a Multimeter
A comprehensive guide to identifying and using the voltage symbol on a multimeter, including DC and AC indicators, safe practices, and practical measurement tips.
Voltage symbol on a multimeter refers to the V symbol used to select voltage measurement mode and signals that the device will measure electrical potential difference. It distinguishes voltage testing from current or resistance modes.
What symbol is voltage on a multimeter?
According to All Symbols, the voltage symbol on a multimeter is typically the letter V used to select a voltage measurement function. In many digital meters you will see either a plain V for DC voltage or V with a tilde representing AC voltage. Some models display V followed by a small tilde or the label AC to indicate alternating current. This symbol is a standard shorthand that distinguishes voltage testing from current or resistance modes. The reason it matters is that applying the wrong test mode can damage the meter or give you misleading results. By recognizing the symbol, you ensure you are configuring the instrument to read voltage rather than current or resistance.
The voltage symbol family: DC versus AC
Most multimeters differentiate between DC and AC voltage through a variant of the V symbol. A DC setting commonly uses a V with a solid line indicator, while an AC setting uses a V with a tilde or an AC label. On some meters the DC and AC options are grouped under separate buttons or a rotary dial with distinct icons. The key is to locate the voltage section and identify whether the meter is set for DC or AC measurement before you connect probes. Misinterpreting the symbol can lead to incorrect readings or, in worst cases, equipment hazards.
How to identify the symbol on your meter

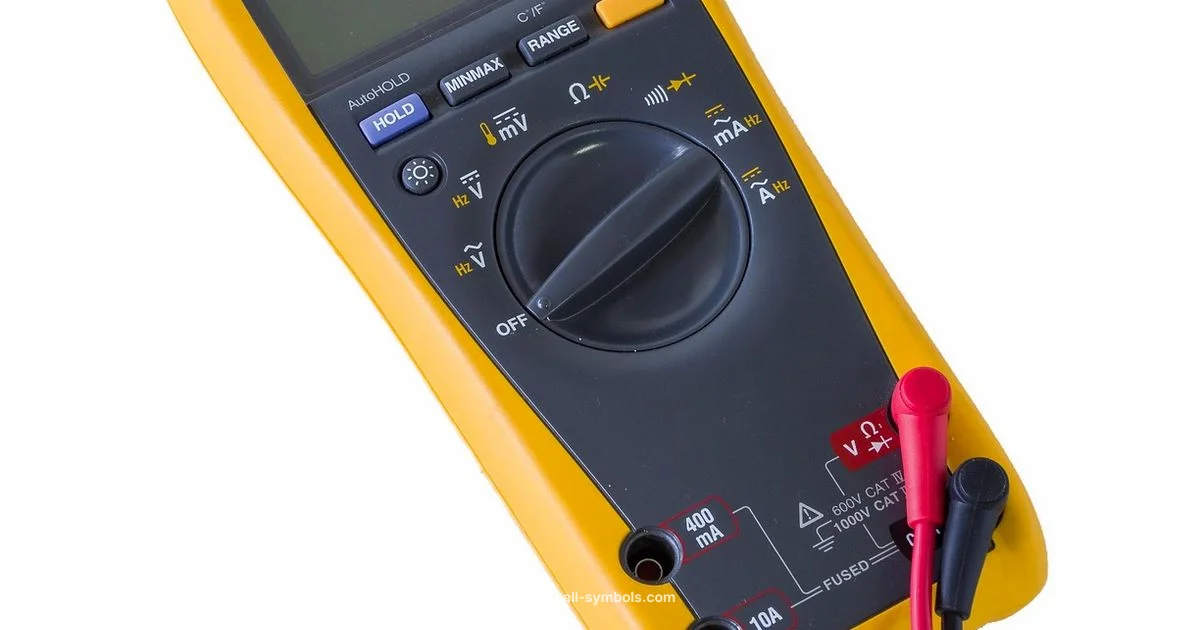

Start by inspecting the rotary switch or pushbuttons around the display. Look for the characters V, V DC, V with a straight line, or V with a tilde. If your device shows both V and V with a tilde, ensure you rotate to the appropriate position for the signal you want to measure. Some meters use color coded segments or symbols, such as a blue DC label or a red AC label. In portable meters, the screen may display V with an indicator such as DC or AC when you select the mode. Always confirm the selected mode on the dial before attaching probes.
Reading the display after selecting voltage mode
Once the dial is on voltage, you will see the display show the voltage value in volts. A DC measurement might show a straight line icon in some devices, while an AC measurement shows a tilde. On many digital meters, you will also see a polarity indicator or a minus sign if the signal is negative. When testing, observe the unit symbol V next to the numeric value and verify whether there is a DC or AC label. If you use the wrong mode, you may see erratic numbers or infinity symbols, which indicate a measurement issue or safety concern.
Practical measurement scenarios
To illustrate, use a fresh 1.5V battery to test DC voltage with a meter set to DC V. For AC voltage, measure a standard mains outlet in your region by switching to AC V. Always start with the probe tips on the same conductor for DC circuits and on the live conductor for AC tests. In both cases, ensure the device is in good condition, and follow the manufacturer’s safety precautions. If you are unsure about the voltage range, consult the meter’s manual before attempting tests.
Common mistakes and how to avoid them
Common mistakes include testing voltage in resistance mode, forgetting to switch to voltage, or placing probes on the wrong terminals. Always verify the symbol and the mode on the display before touching the probes. Avoid touching metal parts and keep hands dry. If your meter does not show a clear V symbol or the AC/DC distinction, consult the manual or contact support. A failing symbol can lead to misreadings or unsafe situations.
Safety considerations when measuring voltage
Electrical testing can be dangerous if performed improperly. Always wear appropriate PPE and use meters with safety ratings suitable for the voltage you expect. Start with the highest protection setting and work down as you become more confident. Never measure voltages you are not prepared to handle, and avoid contact with exposed conductors. Disconnect power when possible and ensure your meters are rated for the voltage range you are testing. Following these practices helps minimize risk while reading voltage on a multimeter.
Care, maintenance, and calibration of meters
Keep the meter clean and dry, and inspect probes for wear. Regularly check the probes and connectors for damage. If your meter has a calibration procedure, follow it at recommended intervals or after any impact. Voltage accuracy depends on the integrity of the probes, battery, and internal circuitry. When in doubt, arrange professional calibration or a service check to maintain measurement accuracy.
Quick-start checklist for voltage measurements
Before you measure voltage, ensure the meter is on the correct voltage setting, the probes are in the proper ports, and the circuitry is safe to access. Confirm the scale and units on the display, and read the voltage value carefully. Store the device in a dry place and handle the probes with care. This quick checklist helps you perform reliable voltage measurements with confidence.
Questions & Answers
What symbol indicates voltage on a multimeter, and how do I know if it is DC or AC?
Most multimeters use a V symbol to indicate voltage measurement. DC voltage is usually labeled with V and a straight line symbol, while AC voltage is shown as V with a tilde or an AC label. Check the dial and the display to confirm the mode before testing.
Look for the V symbol; DC usually shows a straight line, AC shows a tilde or an AC label. Verify the dial and on display indicators before measuring.
Why is it important to select voltage mode on a multimeter correctly?
Choosing the correct voltage mode prevents incorrect readings and reduces the risk of damage to the meter or the circuit. If you test voltage in current mode, you may blow fuses or cause incorrect results.
Correct voltage mode prevents misreadings and potential damage; avoid testing in current mode.
Can a multimeter measure both DC and AC voltage?
Yes, most meters can measure both DC and AC voltage, but you must switch to the appropriate V setting for either DC or AC. Some meters display DC or AC indicators on the screen as you switch.
Most meters measure both DC and AC voltage; switch to DC or AC mode as needed.
What safety steps should I take when measuring voltage?
Always follow safety guidelines: wear PPE, use meters rated for the voltage, keep dry hands, and start with a lower setting. If you are unsure, consult the manual or a professional.
Wear proper PPE, ensure meter rating, keep dry, and start with low settings. If unsure, seek guidance.
What should I do if I see an odd reading or no symbol when measuring voltage?
If readings are odd or symbols are missing, power off, recheck the mode, inspect probes for damage, and ensure you are measuring within the meter’s range. If problems persist, calibrate or service the meter.
If readings are odd or symbols missing, recheck mode, inspect probes, and ensure safe range. Seek service if needed.
How do I maintain a multimeter’s accuracy for voltage readings?
Regular calibration, proper probe maintenance, and using fresh batteries help maintain accuracy. Follow manufacturer guidelines for calibration intervals and storage.
Keep accuracy with regular calibration, good probes, and fresh batteries following the manual.
The Essentials
- Learn the voltage symbol and what it signals on your meter
- Differentiate DC and AC voltage symbols before testing
- Always verify mode before attaching probes for safety
- Use correct probe ports and safety practices
